Vacuum Pump Oil

Home / Vacuum Pump Oil

Essential for Performance, Protection, and Longevity

Oil has a major role to play in any oil-sealed vacuum pump. Good quality vacuum pump oil acts as a lubricant to reduce friction, thereby minimizing wear and tear of internal parts and improving the overall life of the pump. During operation, the vacuum pump compresses gas, which results in heat generation; increased heat leads to higher wear and reduced pump life. Vacuum pump oil helps remove heat from the pumping chamber and improves the life of components. It also provides corrosion resistance by forming a protective layer on pump parts against aggressive vapors. In the vacuum pumping chamber, the rotor is mounted eccentrically to the stator, with a minute clearance in microns between them. The oil acts as a sealing fluid in this gap, enabling the formation of suction, compression, and exhaust chambers. Better sealing quality of oil under operating conditions ensures stable and consistent vacuum pump performance.
Tekman India always recommends using good quality vacuum pump oil to maintain the high performance of oil-sealed vacuum pumps and booster pumps & offers a range of oils to support various application requirements.

Product Category: Vacuum Accessories & Oil

Download Catalogue

Get a Custom Solution for Your Business

Ready to optimize your industrial processes with a custom-engineered vacuum solution?
Our team of experts is here to help. Contact us today to discuss your specific needs and discover
how Tekman can enhance your productivity and efficiency.

Key Specifications

Choosing the right vacuum pump oil ensures stable operation, improved efficiency, and extended equipment life. Tekman India offers a range of vacuum pump oils designed to support a wide variety of application requirements. Tekman India’s mineral & synthetic oil is a high-performance, vacuum-grade oil developed for reliable operation in oil-sealed vacuum pumps and booster pumps. It is well suited for a wide range of general vacuum applications.

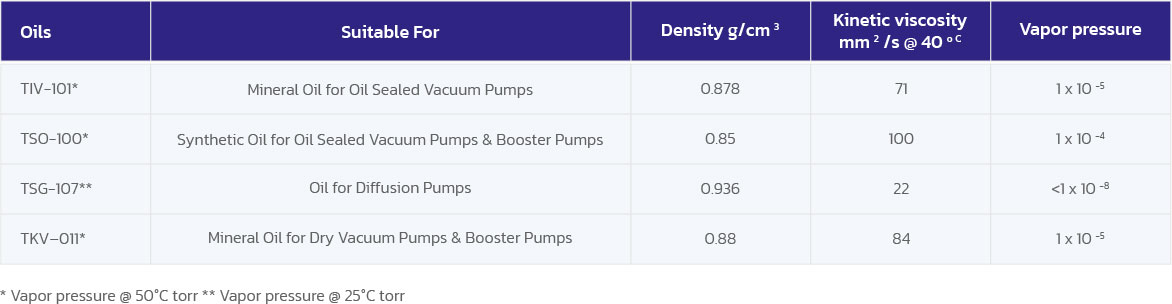

Technical Specifications

Why Choose Our Vacuum Pump Oil?

Best suitable for oil-sealed vacuum pumps

  • High resistance to oxidation:
    Delivers stable performance to any application where there is high exposure to air
  • Low vapor pressure:
    Has a low vapor pressure @ 50°C < 1 x 10 -5 mm of Hg that enables to achieve lower ultimate vacuum in oil-sealed pumps
  • Moisture separation:
    Separates the moisture easily from the oil which helps to deliver stable performance in various processes where water vapor is the major load to be handled by a vacuum pump

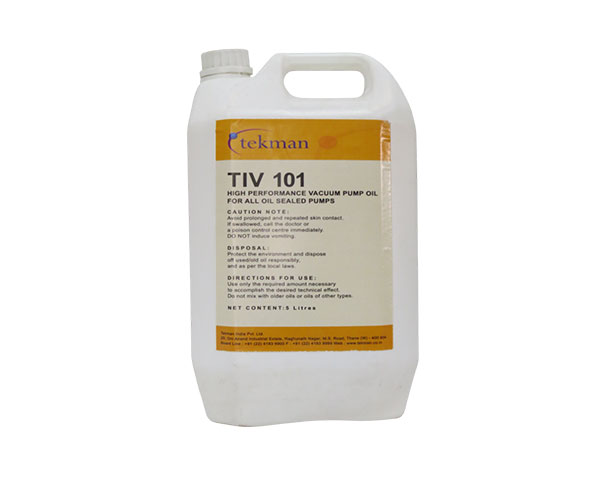

Mineral Oil -TIV-101
Mineral Oil -TIV-101

Best suitable for oil sealed vacuum pumps and booster pumps

  • Withstand High Temperature:
    In case of air-cooled pumps, if the surrounding temperature is high, the oil life reduces quickly. TSO-100 delivers stable performance under such conditions. The viscosity of the oil is not affected by a rise in temperature.
  • Chemical Resistance:
    TSO-100 delivers better performance in handling corrosive & organic vapors compared to mineral oil. The oil does not easily mix with aggressive vapors, which helps TSO-100 synthetic oil last much longer than mineral oil.
  • High Resistance to Oxidation:
    TSO-100 delivers stable performance in applications where there is high exposure to air.

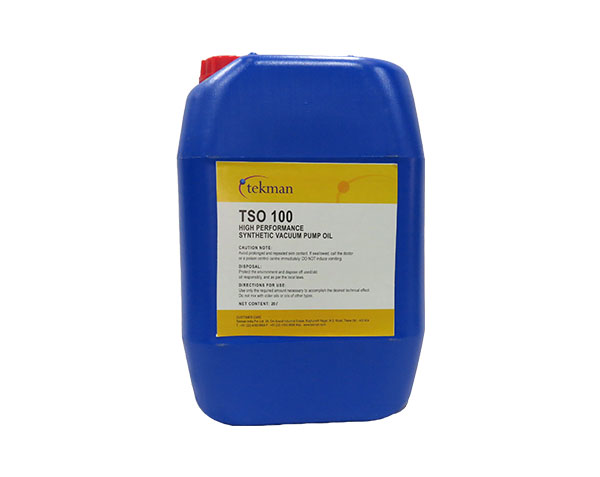

Synthetic Oil-TSO-100
Synthetic Oil-TSO-100

Best suitable for booster pumps

  • Excellent lubrication:
    High-performance lubricant oil used for the lubrication of gears & bearings
  • Heat resistance property:
    Has low vapor pressure and remains stable in operating under high temperature operating conditions
  • High resistance to oxidation:
    Delivers stable performance to any application where there is high exposure to air

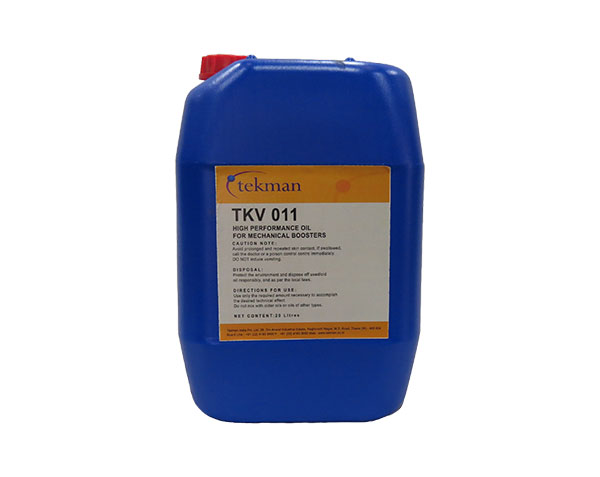

Mineral Oil-TKV – 011
Mineral Oil-TKV – 011

High-performance oil best suitable for high vacuum applications

  • Chemical resistance:
    TSG-107 is non-reactive to metal substances & delivers stable performance in high temperatures. This helps TSG-107 synthetic oil last much longer compared to mineral oil.
  • Low vapor pressure:
    Has a very low vapor pressure @ 25°C < 1.3x 10-6 that enables to achieve lower ultimate vacuum in diffusion pumps.
  • High resistance to oxidation:
    Delivers stable performance to any application where there is high exposure to air like Coating / Metalizing / R&D
Oil For Diffusion Pump
Oil For Diffusion Pump

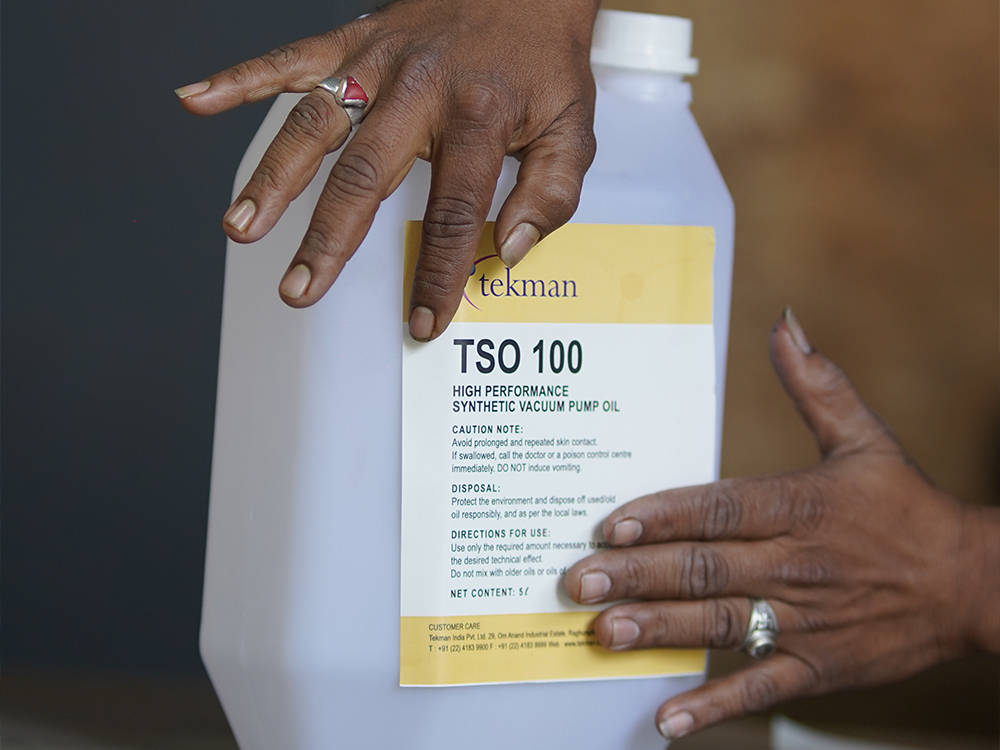

Why Vacuum Pump Oil from Tekman?

Tekman vacuum pump oils has high vapour pressure and hence deliver better ultimate vacuum. The oil does not lose its viscosity at higher temperature and remains stable. It does not emulsify easily with water or solvents. All above offer results into longer oil changing frequency and stable vacuum performance.

With strong expertise in vacuum technology, Tekman recommends the right oil based on operating conditions, temperature, and process requirements, ensuring optimal results for each application.

Tekman vacuum pump oils does not lose its viscosity and remain stable in high-temperature environments, continuous operations, and applications involving aggressive vapors.

Consistent oil performance helps maintain stable pumping speed at operating vacuum, improves pump efficiency, and supports smooth, uninterrupted operation.

High-quality oils and correct oil selection minimize breakdowns, maintenance frequency, and unexpected downtime, lowering overall operating costs.

Tekman’s strong service and application support ensure customers receive not only quality oil, but also expert guidance for long-term vacuum system reliability.

Applications & Industries for Vacuum Pump Oil

  • TIV-101 (Mineral Oil)
  • TSO-100 (Synthetic Oil)
  • TKV-011 (Booster Oil)
Electrical & Transformers Industry
Electrical & Transformers Industry
  • TSO-100 (Synthetic Oil)
  • TKV-011 (Booster Oil)
Pharmaceuticals Industry
Pharmaceuticals Industry
  • TSO-100 (Synthetic Oil)
  • TKV-011 (Booster Oil)
  • TSG-107 (Silicon Oil)
Research & Development Industry
Research & Development Industry
  • TSG-107 (Silicon Oil)
Packaging (Metallizers, Roll Coaters) Industry
Packaging (Metallizers, Roll Coaters) Industry

Frequently Asked Questions

It depends on the type of vacuum pump and specific application. For electrical and transformer use, TIV-101 is ideal, while TSO-100 is recommended for pharmaceuticals and R&D. TKV-011 is suited for booster vacuum pumps, and TSG-107 is best for high-vacuum environments.

It depends on the manufacturer’s recommendations for clean application and also operating conditions. Regular maintenance checks will help determine the appropriate oil change intervals.

These oils are compatible based on type of vacuum pump and application. Tekman offers variety of oil and you should always verify compatibility with your specific pump model.
